SPECIFICATIONS

Brand Name: NONE

Choice: yes

Controller type: dual mode brushless controller

Hall sensor: can use

High-concerned chemical: None

Origin: Mainland China

Rated current: 18A

Rated power: 350W

Type: Controller

Use: electric bike,electric scooter,e-bike,tricycle

Voltage: 36V-48V all can fit

hall sensorless: can use

semi_Choice: yes

36V-48V 350W controller can work with hall sensor/hall sensorless

Rated Voltage: 36V/48V

Low Voltage : 31V/42V±0.5V

Rated Power: 350W

Limit Current: 17A

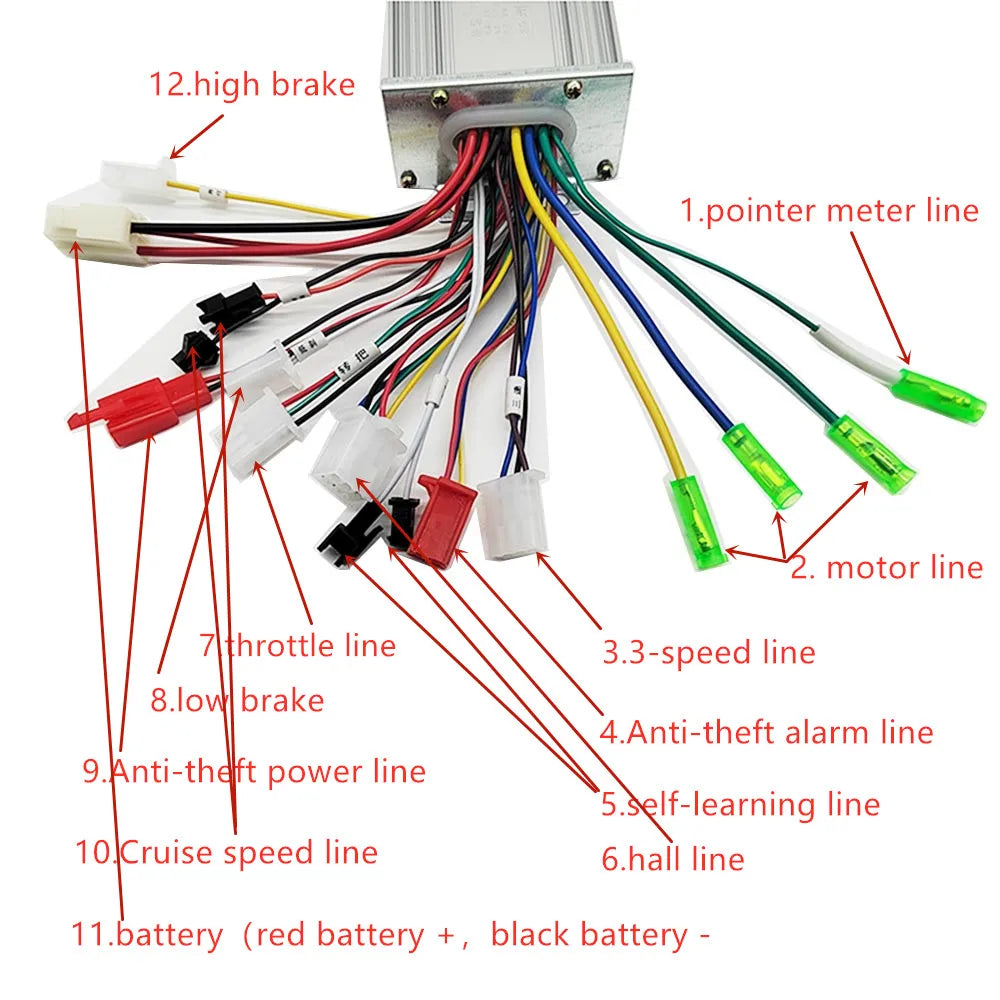

1.pointer meter line

2. motor line

3.3-speed line

4.Anti-theft alarm line

5.self-learning line

6.hall line

7.throttle line

8.low brake

9.Anti-theft power line

10.Cruise speed line

11.battery（2 red wires battery +，black battery -）

12.high brake

一.connect the motor line (color to color）

二. connect the battery line(2 red wires :battery + , black:battery-)

三. connect the controller throttle line（color to color）

四. connect the hall line(if motor without hall line, don’t need connect)

五.docking the two self-learning lines, the wheel will forward or reverse.

(1.if wheel forward ,Separate the self-learning line.

2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate the self-learning line.)

六.other functions can be connected as needed.
