Brushless Motor Controller | 450W Sine Wave & 36–64V Supplier Rating | Compatible E-Bikes & Electric Scooters

A replacement motor-control component for compatible electric bicycle and scooter systems. This supplier-listed 450W brushless controller uses sine wave drive circuitry and includes a multi-wire connection harness. Match the electrical specifications and wiring to your vehicle before ordering or installation.

Product Features

Brushless motor control: Intended for compatible e-bike and electric scooter systems, not gaming equipment.

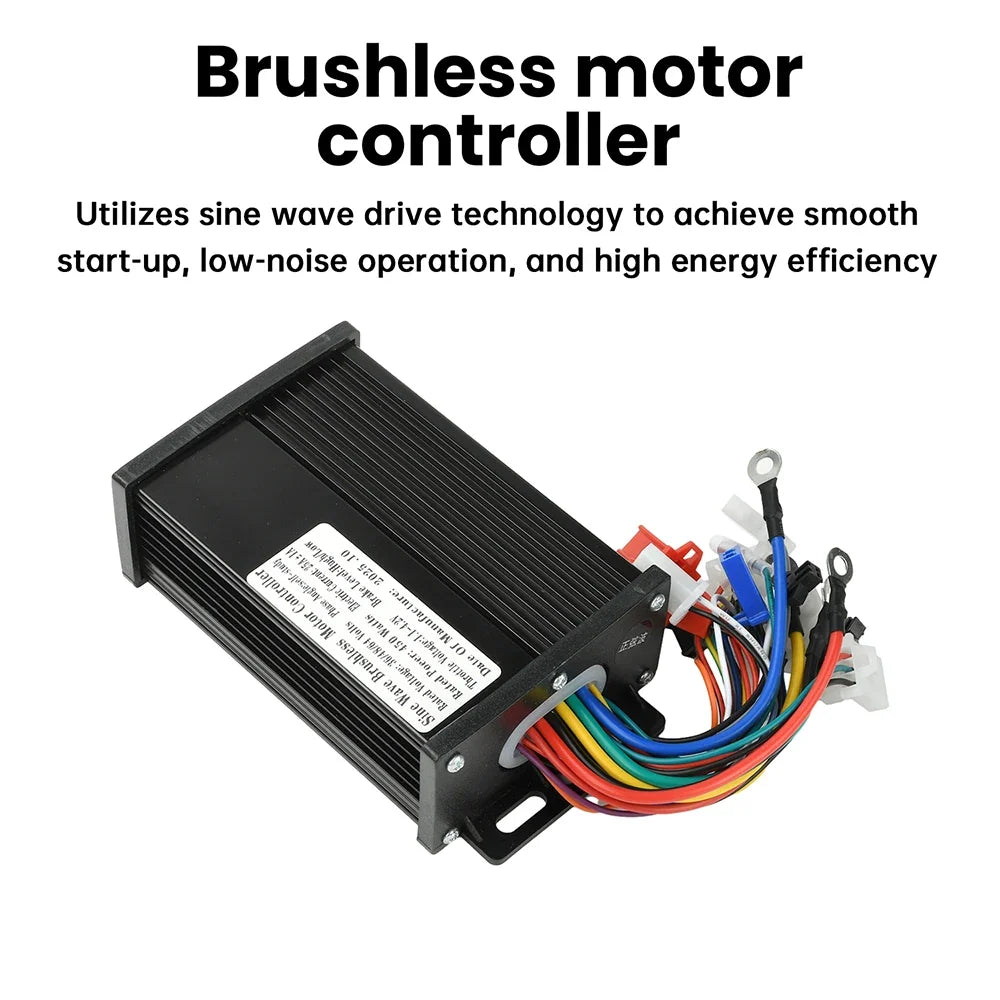

Sine wave drive: Supplier-listed drive technology; quiet operation and efficiency improvements have not been independently verified.

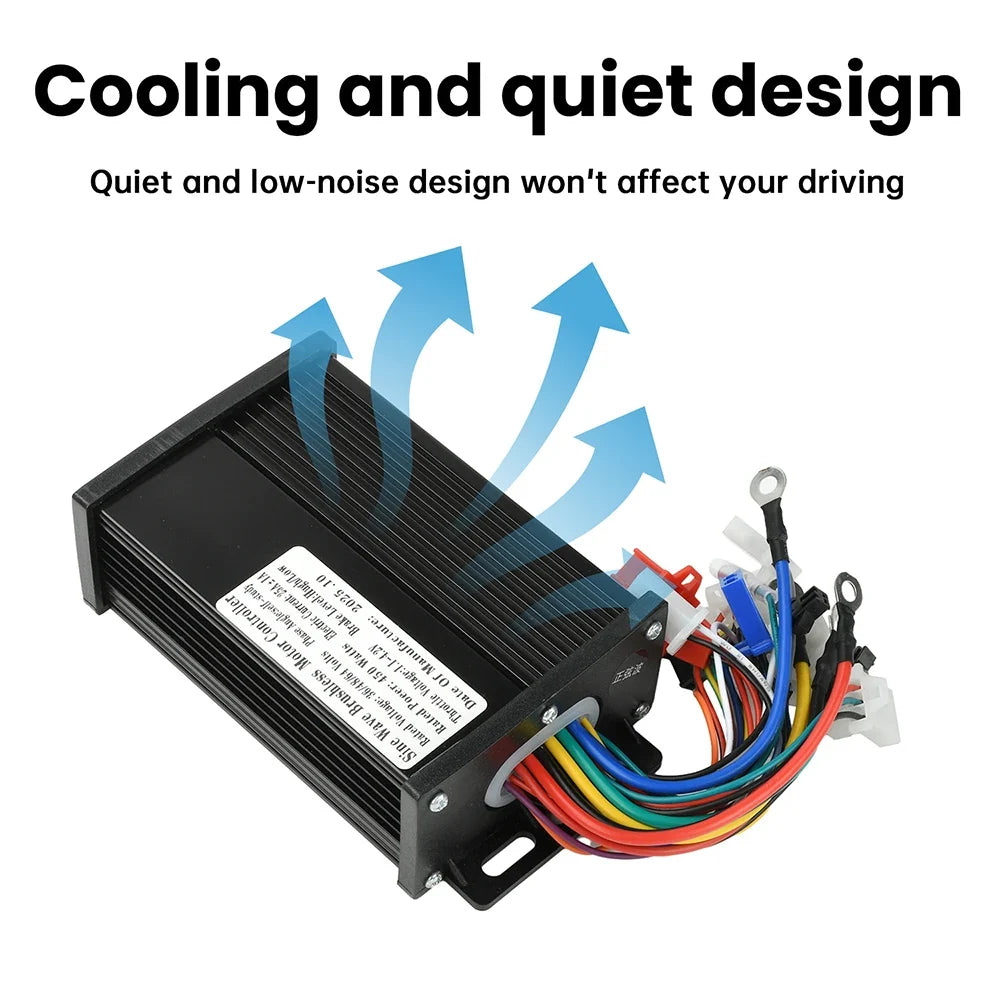

Aluminum alloy housing: A finned enclosure for the controller circuitry.
Connection harness: Multiple leads for system connections; connector shape alone does not establish electrical compatibility.
Additional functions: Supplier copy lists three-speed operation, reverse, cruise control, display connections, brake inputs, and learning-wire functions. Availability depends on compatible wiring and accessories.

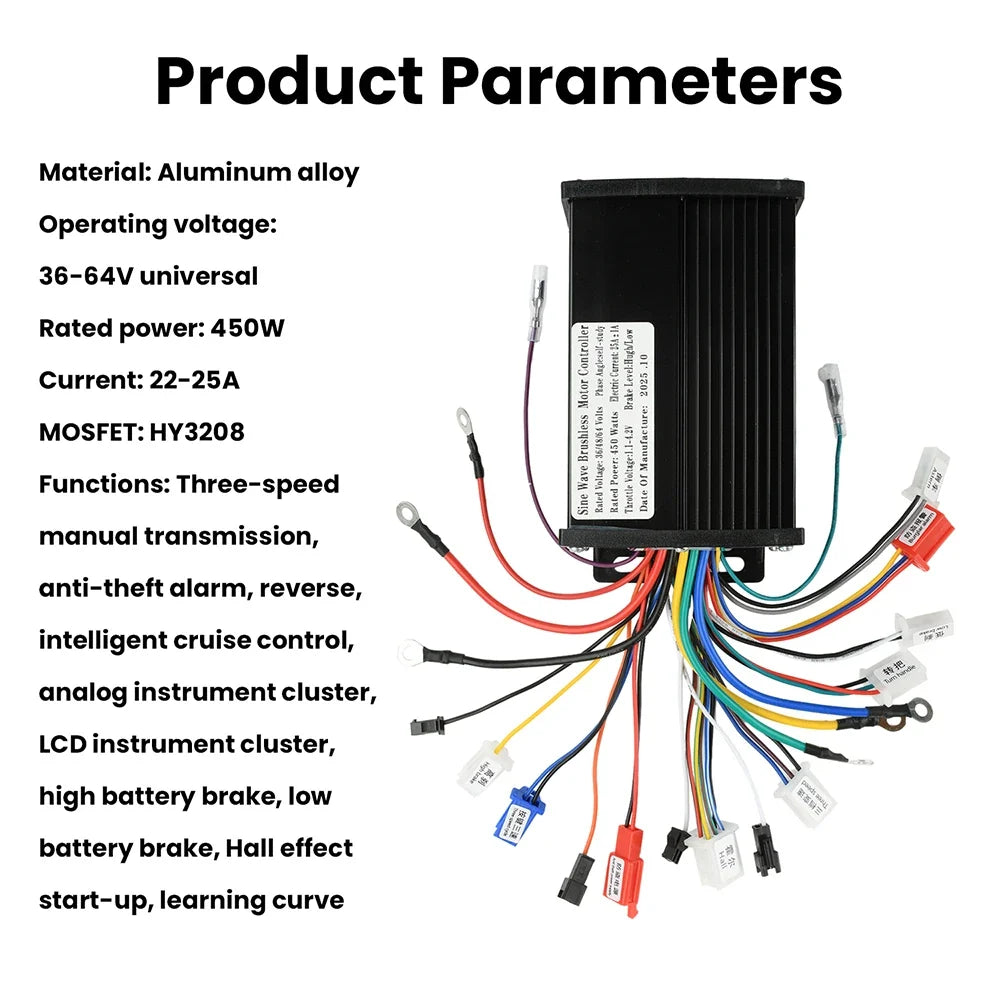

Supplier-Listed Specifications

Feature	Details
Component	Brushless motor controller
Rated power	450W, supplier-listed

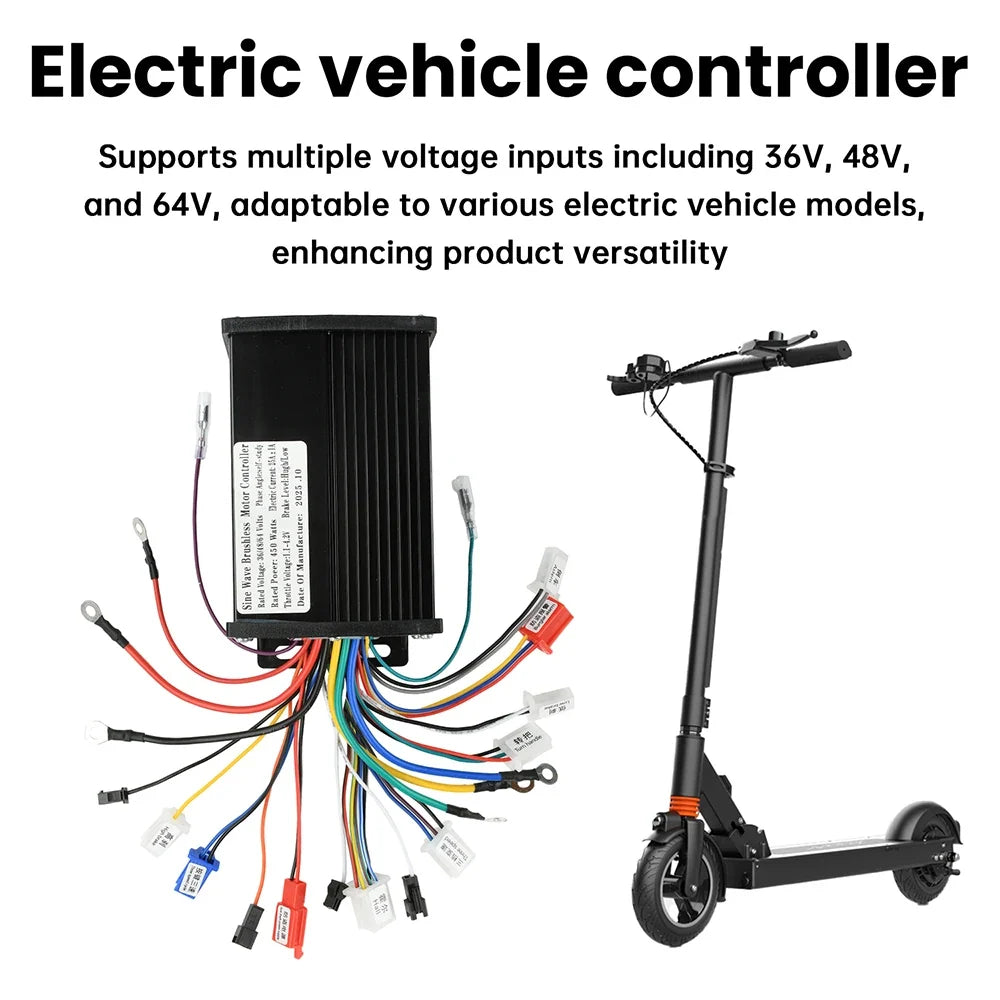

Voltage	36–64V, with 36V, 48V, and 64V mentioned in supplier copy; confirm the actual unit label and permitted battery voltage range
Current	22–25A, supplier-listed; confirm the actual unit rating

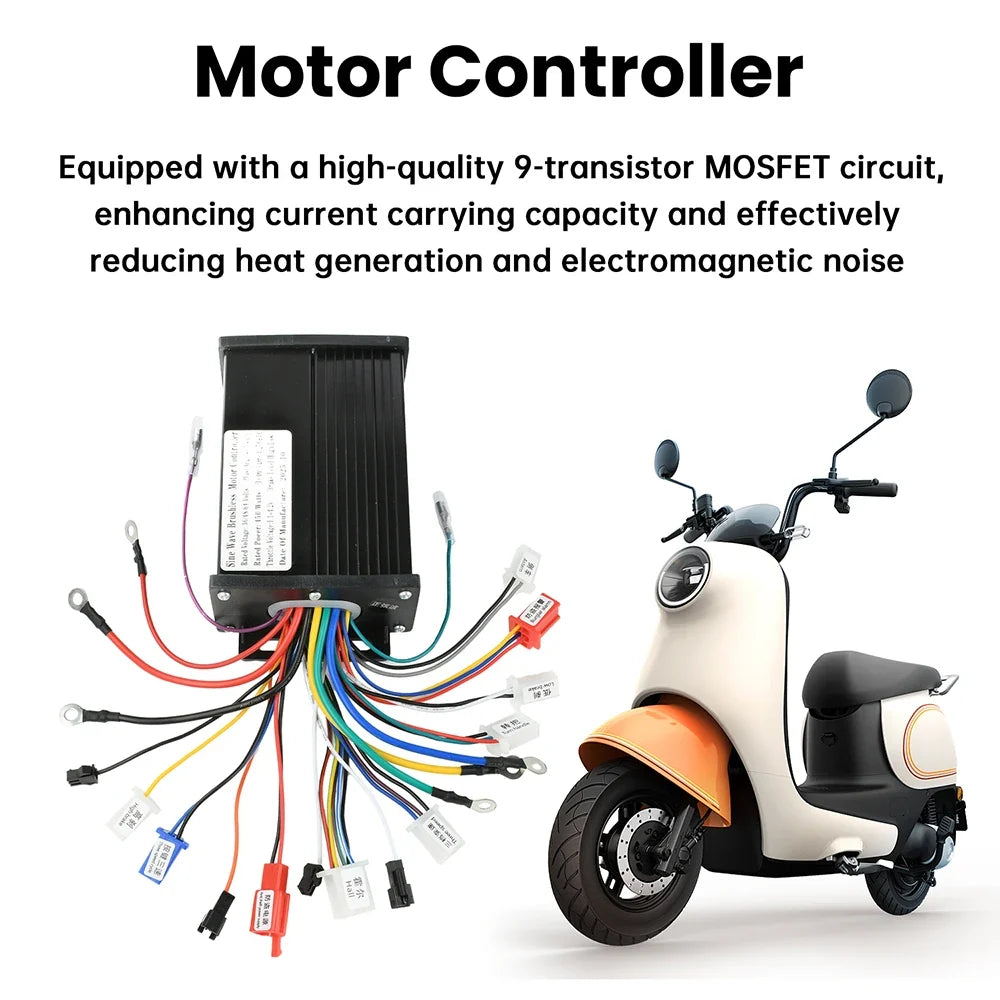

Circuitry	9-transistor MOSFET design, HY3208 listed by supplier
Drive mode	Sine wave; marketed by the supplier as triple-mode
Housing	Aluminum alloy
Package	1 motor controller; a motor, battery, display, alarm, and remote are not confirmed as included

Compatibility tip: Ask a qualified electric-vehicle technician to compare your battery's fully charged voltage, motor requirements, current limits, connector pinouts, brake inputs, and display protocol with the controller's actual label and wiring documentation. This is not a universal plug-and-play replacement.

Anti-Theft Function: Important Distinction

The supplier's specification image and description list an anti-theft alarm function. This supports a supplier-stated controller function, but does not establish that a complete alarm system, siren, or remote is included or that it works without additional hardware. Confirm the required connections and accessories with the supplier before relying on this feature. This product is not a GPS or location tracker.

Repair & Replacement Use

For a controller replacement project, start with the original vehicle's specifications rather than advertised wattage alone. A technician can check the wiring and compatible components before connecting the replacement and testing the system.

Installation & Safety

Installation should be performed by a qualified technician. Disconnect the battery before servicing and follow the vehicle manufacturer's procedures. Do not connect unidentified leads, bypass safety systems, or use mismatched batteries and motors. Cruise and reverse functions require appropriate system support and safe configuration.

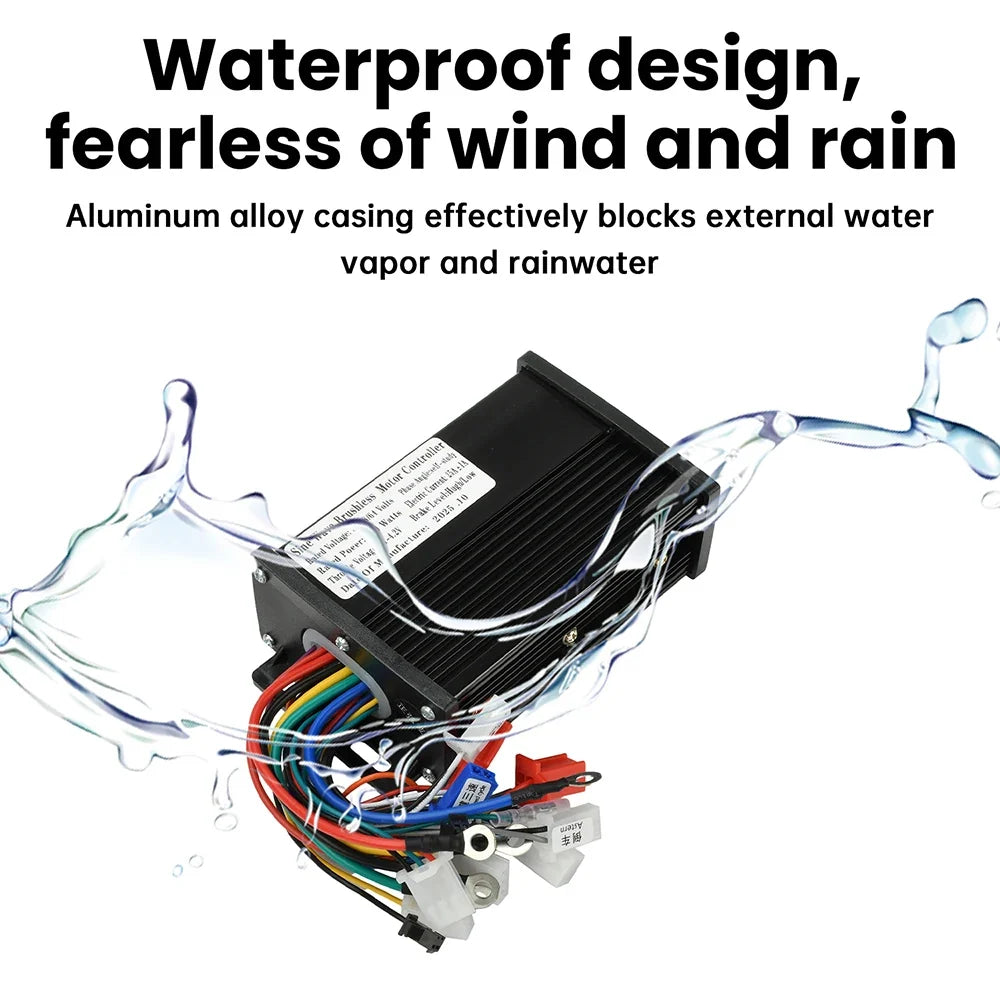

Supplier images advertise waterproofing, but no verified ingress-protection rating is provided. Protect the controller and connections from water. Road-use approval, safety certifications, climbing performance, heavy-load capability, and universal vehicle compatibility have not been verified. Product images and supplier text are not substitutes for a confirmed wiring diagram.

TikTok Shop Product Note

Describe this as a motor-controller component. Do not advertise it as a complete anti-theft kit, tracker, universally compatible upgrade, certified waterproof unit, or guaranteed speed or power improvement.

Care

Keep the housing and connections dry and free of debris. Have a technician inspect mounting, wiring, and connectors as part of vehicle maintenance. Stop use and seek qualified service if overheating, damaged insulation, or abnormal operation occurs.

Customer Reviews

No customer testimonials are reproduced here. Published reviews should reflect genuine customer experiences.

Check Your System Before Ordering

Confirm the actual voltage rating, wiring documentation, and accessory requirements to determine whether this controller fits your repair project.
