SPECIFICATIONS

Brand Name: new landing

Certification: CE

High-concerned chemical: none

Origin: Mainland China

Smart home platform: Tuya

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Description:

WiFi connection & HD peephole, remote intercom, suitable for IOS and android smartphone.

4.3 inch high-definition LCD screen
HD 1080P image ultra-low power consumption design
Quick access via app (automatically wakes up within 3 seconds)
Respond to users access demands within 1 second
2pcs IR Leds, support 2-way audio with noise cancellation
APP support iOS & Android
Automatic take a picture & video recording when visitor press doorbell
PIR motion detect alarm
Cloud storage function
Support max. 128GB TF card to save video recording (not included, please use above C10 high speed in FAT32 format TF card for the doorbell)
Built-in 5000mAh lithium battery and easy charge by USB
No need charge within 6 months
The newest design case-weatherproof
Easy installation (no need any cable), just wifi connection

Specifications:

LCD Display Size: 4.3 inch

- Image Sensor

Solution: OV9712 CMOS Sensor + Hi3518E SoC

Display Resolution: 2.0MP-1920*1080P

Focal Length: 1.7mm

Angle of View:120 degreewide angle

- Audio

Input/Output: Built-in microphone&speaker

Type: 2-way audio with noice cancellation

- Video

Video Compression: H.265

Resolution:1920*1080P@25fps

Stream: Double stream

Night Vision: 2pcs IR-LEDs

- Alarm

PIR Motion Detect: Yes

- Network

Protocol: TCP/IP,UDP.DHCP,P2P

Wireless Standard: 2.4Ghz WiFi IEEE 802.11b/g/n

- App

Support: Android,IOS

APP: "YCC365 PLUS"

APP: "Tuya"

- Storage

Mobile Phone Memory: Yes

SD TF Card: Max. 128GB (not included)

Cloud Function: Yes

- Power

Power Supply:Built-in Lithium Battery and Easy Charged by USB

Charging Port: Micro USB

- Consumption

Working Mode: 380mA (IR on)

Standby Mode: 200uA

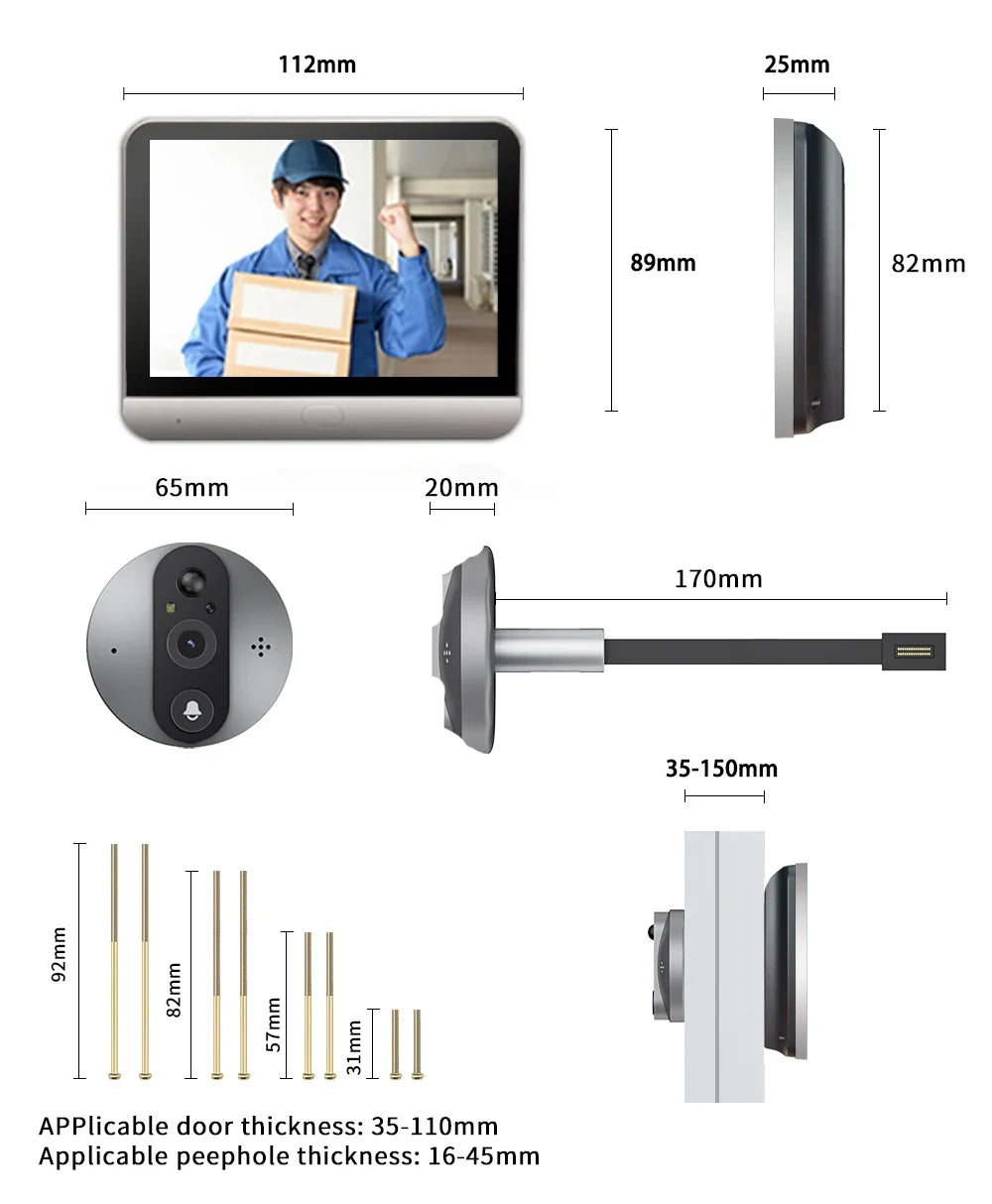

Physical:

LCD Dimension: 140*82*20 mm

Camera Machine: 64.5*64.5*16 mm (copper)

Weatherproof: Yes

User Accounts: Total 4 Users

Working Temperature: -20℃ to 55℃

Relative Humidity: 85% non-condensing

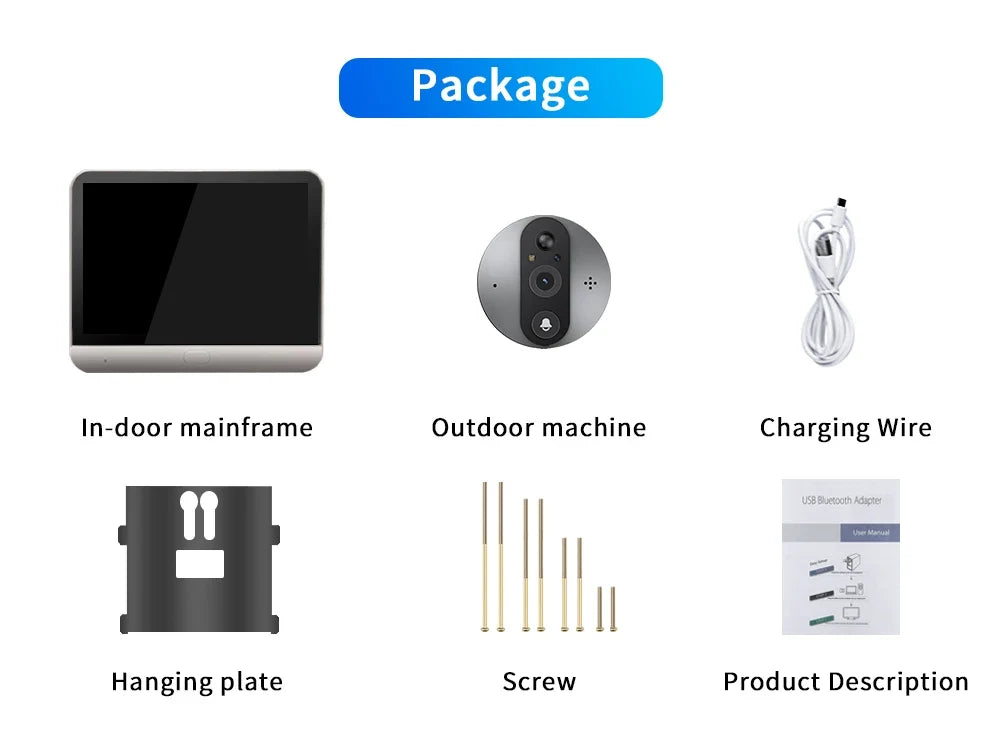

Packing List:

1x WiFi Peephole Viewer (indoor)

1x Doorbell (outdoor)

1x Micro USB Cable

1x Mounting Plate

1x Screw Kit

1x User Manual

Notice: TF card is not included!!!
