SPECIFICATIONS

Brand Name: NONE

Certification: CE,FCC,RoHS

Data Transmission: Other

Display screen: No

High-concerned chemical: none

Intelligent Charge: Yes

Model Number: 54.6V 2A/3A/5A

Origin: Mainland China

Output Power: 150-500（include500）

Package: Yes

Power Source: Other

Quick charge: Yes

Type: Electric

Use: 48VElectric Bike Charger

Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)

The charger sends a DC plug by default, and buyers need other plugs, which need to be remarked. Thanks!

54.6V 2A/3A/5A Charger 13S 48V Li-Ion Battery Pack Charger Fast Smart Charge Full Self Stop Electric Bike Charger

[Product Specifications]
Model: 54.6V 2A/3A/5A smart charger
Maximum output power: 110W/160W/270W
Input voltage: 110-240V
Rated input voltage: 110-240v 50-60 Hz
Maximum output voltage: 54.6V +/- 0.2Vdc
Output: 54.6V 2A/3A/5A
Efficiency: >85%
Smart Charge Mode (Constant Charge Current (CC), Constant Charge Voltage (CV)
Constant current CC ≤73Vdc, 5A
Constant voltage CV 73Vdc, 5A
Weight: 340±5g/400±5g/640±5g
Size: 162*73*45mm/165*80*57mm/195*90*65mm

Protective function:
Short circuit protection: yes
Overvoltage Protection: Yes
Overcurrent Protection: Yes
Voltage Limit Protection: Yes

charging indicator:
Charging LED 1: Red
Fully charged LED 1: Green
Charging indicator: charging red light full green light
Safety protection: OVP/OCP/overload protection/short circuit protection

Country/Region

Country/Region

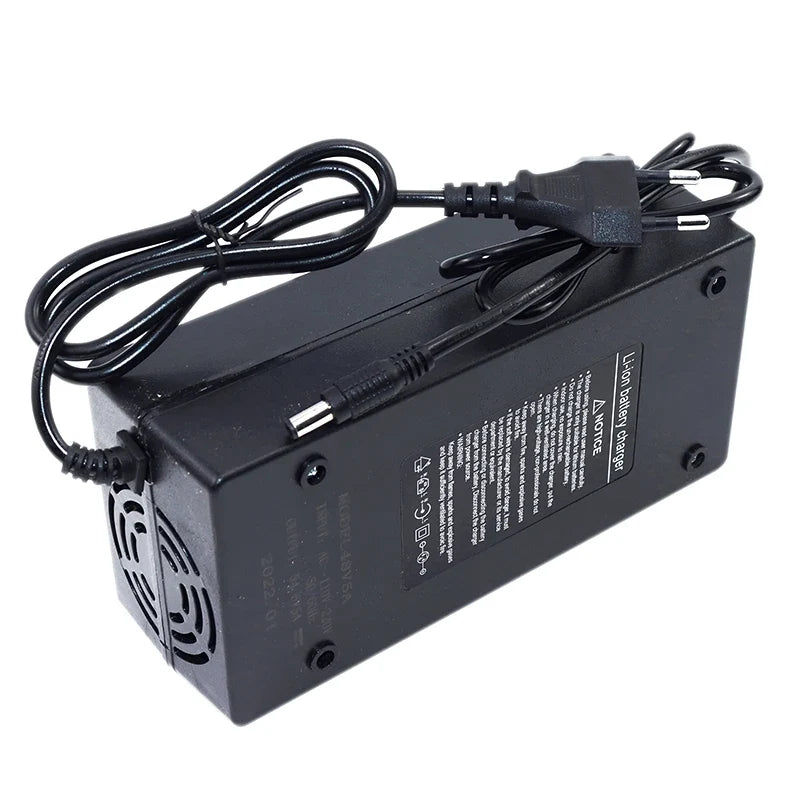

54.6V 2A/3A/5A charger 13S 48V lithium-ion battery pack charger fast intelligent charger DC: 5.5 * 2.1mm
