SPECIFICATIONS

Brand Name: NONE

Current: 13A (250W) / 15A (350W)

Motor type: Brushless Motor

Origin: Mainland China

Power: 250W or 350W

Type: Controller

Voltage: 24V 36V 48V

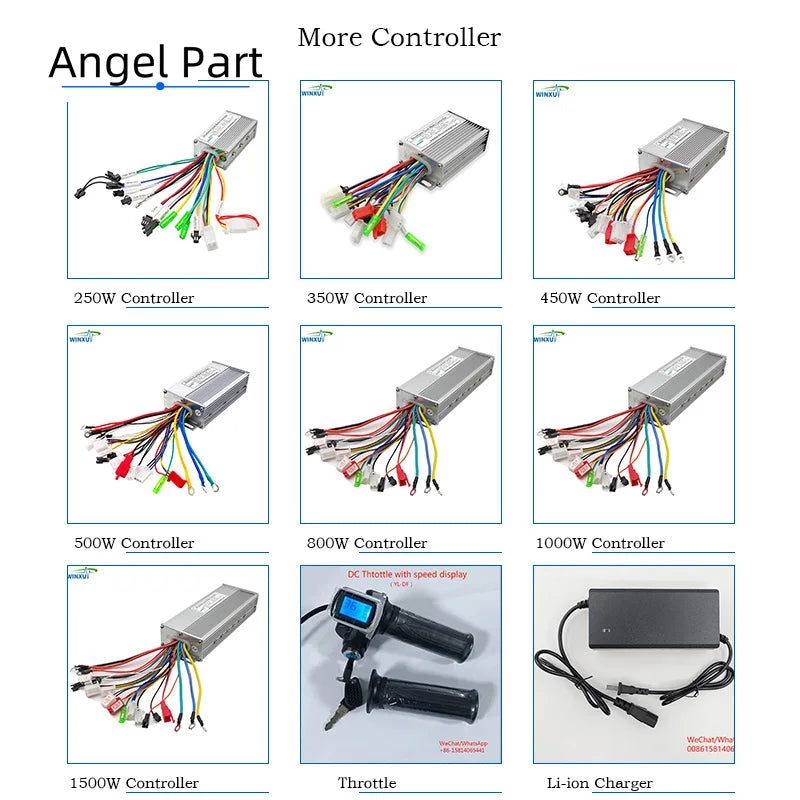

For more products, please visit our shop

Packing list:
1 PCS of controller

We are factory store and support wholesale. If you order a large quantity, please contact our online customer service and we will provide you with wholesale price

Electric Bicycle Brushless Motor Controller

WinXu Tech brushless motor drive controller, automatically compatible with all motors on the market

PRODUCT DATESHEET

●product size：95x30x55mm
●Rated Voltage：DC 24V 36V or 36V 48V
●Rated Power: 250W
●Rated Current:: 13A
●Low Voltage Protection: 18V 30V
●Standby Power Consumption: ＜5mA
●Housing Materials: Aluminium alloy
●Water proof: IPX6
●Motor Matching： Brushlees Motor
●Display Matching: Ordinary LED & LCD display

FUNCTIONS & FEATURES

●Super low noise:
Reduce the motor torque ripple to minimum ;Achieve vehicle noise -Free vibration -Free and Comfortable riding feeling (Imitation torque )

●High efficiency;
Field oriented control (FOC)Driving technology allows higher system efficiency ,Lower heat loss and longer riding mileage.

●Multiple protections;
Over-current protection ,Over voltage /Under voltage protection ,Overhead protection runaway protection ,Short-Circuitprotection

Phase wire disconnect protection ,Blockage protection .

●Flexible configurations;
All the functions of the controller depend on the needs of customers

Strong Power and Stable Quality

Electric bicycle controller

Aluminum Alloy Material/ Smooth Texture/ IPX7 Waterproof/ No Rust

AI Intelligent Processing Chip, Stable Operation

Automatic recognition of motor mode, automatic compatibility with all brushless motors, multi-automatic protection function

High power controller for stable climbing

250W To 3000W multi-power model available, strong driving motor, high climbing efficiency and fast speed

WinXuTech Brushless Controller Suitable For Various Electric Bicycles/ Scooters/ Tricycles

IPX7 deep waterproof, no fear of wind and rain

WniXu Tech brushless series controller adopts deep waterproof seal design, and the waterproof grade can reach IPX7. You do not need to worry about thunderstorm weather or riding in the water.

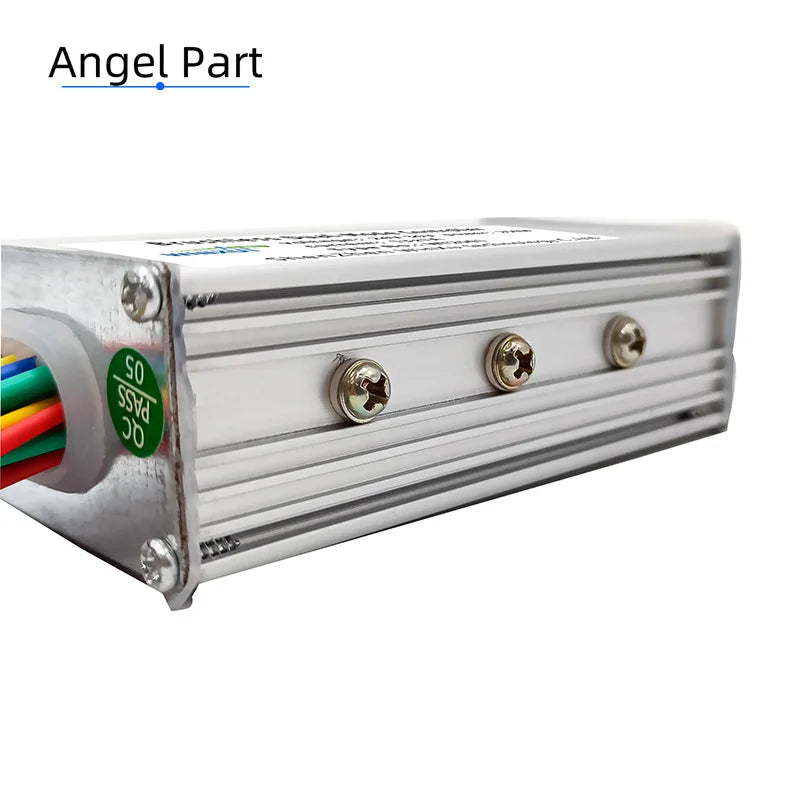

Pure aluminum alloy radiator shell, fast cooling and stable operation

The controller uses aluminum alloy radiator as shell material. Scientific research has found that aluminum alloy material can perfectly realize rapid heat dissipation and cooling, keep the internal MOS in a low temperature state all the time, and prolong the service life of the controller.

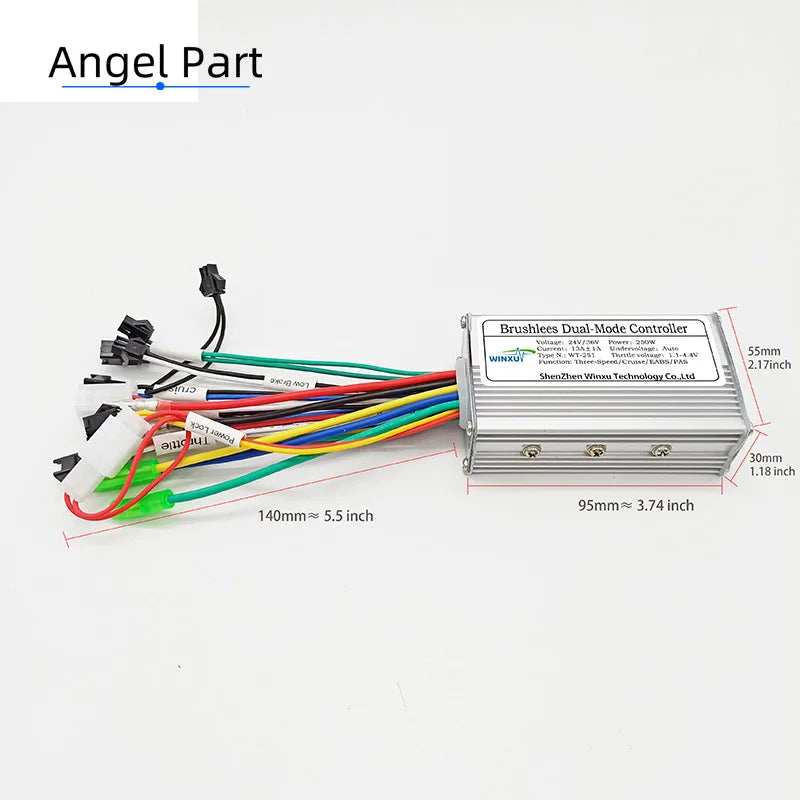

Product Size

Small figure, big function. Perfect pure aluminum alloy material, using industry standard size, compatible with more electric bicycles/scooters

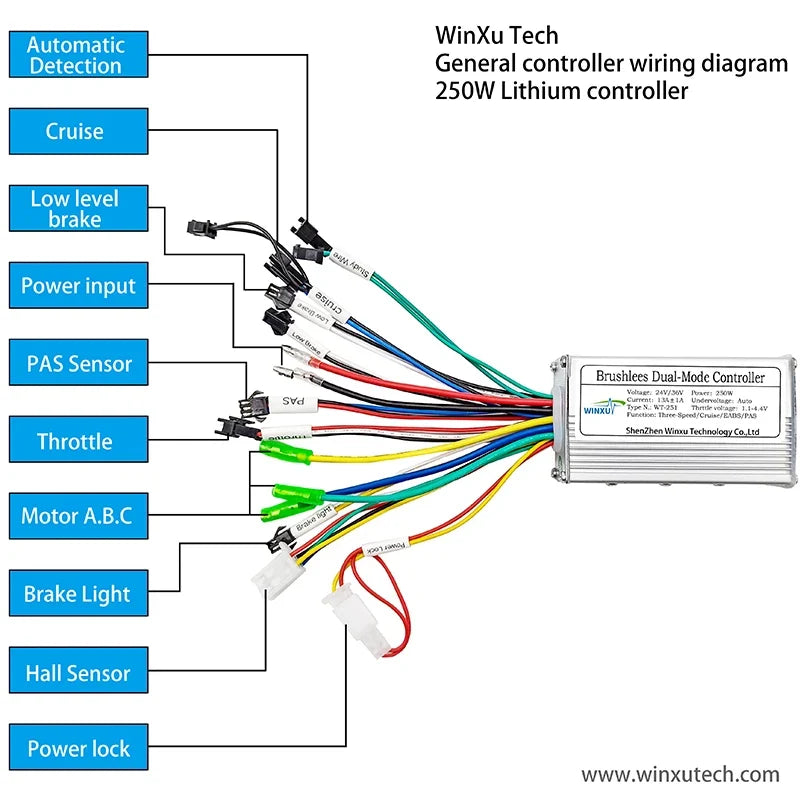

250W Controller Wiring diagram

Support custom service. Please contact online customer service

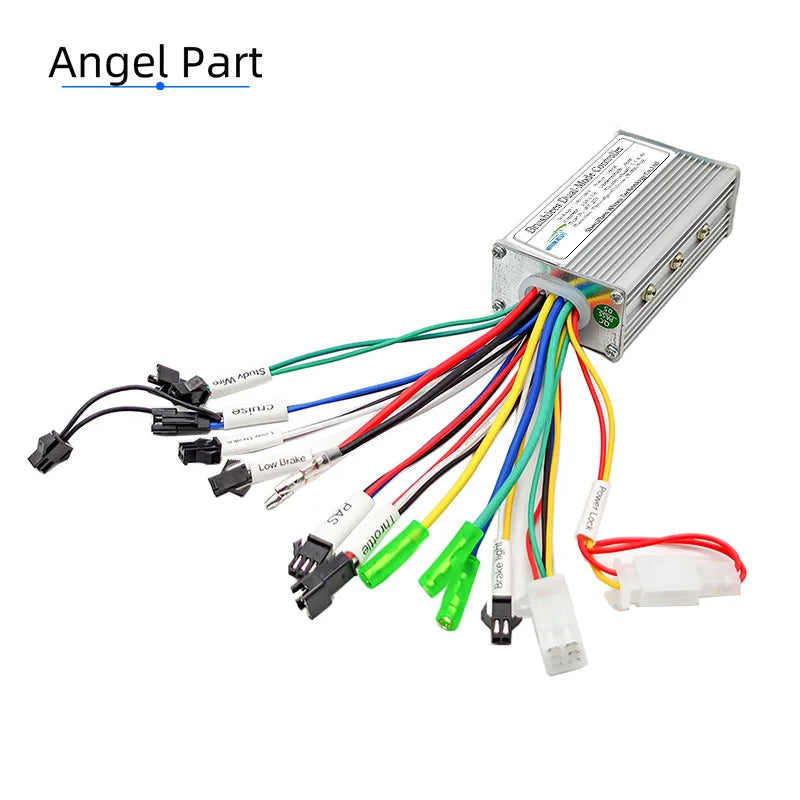

250W controller function description

Please follow the steps described below to connect the controller to your Ebike motor

1. Motor A.B.C
Brushless motor are usually 3 motor wires (thick blue, green, yellow) and 5 Hall wires (5P connectors).
Please connect the 3 motor wires ABC of the controller to your motor wires, please note that the same colours are connected together.

2. Hall sensor
In the second step please connect the 6P Hall sensor connector to the Hall wire of your motor, if the connectors are not the same you can cut the wires to connect. Please note that the same colour must be connected correctly.
Red is 5V+. Black is 5V negative.

3. Throttle
Red: 5V + pole, white (green): throttle signal, black: 5V - pole.
Please connect the controller throttle wires to your throttle connector, if your throttle connector is not the same as the controller connector you can cut the wires to connect, please note the 5V + and - and signal wires. Please take care to connect the wires correctly.

4. Low level brakes
Black and red wire 2p connectors.
The controller has 2 brake wire connectors, please connect to your left and right manual brakes. When the black and white wires are shorted together, the controller will cut off power to the motor.

5. Brake light
Yellow and white wire 2p connectors.
Yellow wire 5V+ Black wire 5v-, please connect to your Ebike brake tail light. This wire will output 5V to drive the brake tail light when using the manual brake.

6. PAS (Power Assist System)
Blue wire: PAS signal. Red: 5V+, Black: 5V negative. 3P connector.
Please connect to the PAS sensor of your e-bike. If the connector wires are ordered differently, you can change the order of the wires manually.
But please note the 5V+ and - and signal wires. The correct connection is sufficient for normal use. We recommend using the dual Hall 8 magnet PAS

7. Automatic cruise
Blue and black wire 2P connector.
Please connect to your throttle cruise button wire. If the connectors are not the same, you can use our complimentary connectors.
This function means that, when switched on, the speed will be constant at the speed you had before you switched on auto-cruise.
If you do not use this function, then you can leave this connector unconnected.

8. Power input
Thick red wire and thick black wire. Red +, black -.
Please connect to your battery, please note that red is the + pole and black is the negative pole. When connecting you need to take special care not to connect the wrong + and -, otherwise you will damage the controller. Please pay particular attention to this step.

9. Power lock
Red wire and yellow wire, blue 2P connector.
Please connect to your key lock, if your key lock connector is not the same, you can use the complimentary connector.
If your Ebike does not need a power lock. Then you can just short them with our complimentary connectors.

10. Automatic detection (learning)
Green wire connectors.
When you have done all of the above, please leave your Ebike motor wheel suspended. and turn on the key lock and power input, short the auto-detect wire for 10 seconds while the controller is checking your motor parameters, after 10 seconds please disconnect the auto-detect. If your motor is running in reverse, then you connect the auto-detect wire again for 10 seconds to retest and select the correct motor running direction. After this operation you have completed all connections. You can use your e-bike normally.

24V/36V 250W Controller

● Product size:95x55x30mm
● Voltage：24V/36V or 36V/48V
● power：250W
● MOS: 6
● Current：13A±1A
● Undervoltage：automatic
● Function: Three-speed / Cruise / EABS/PAS

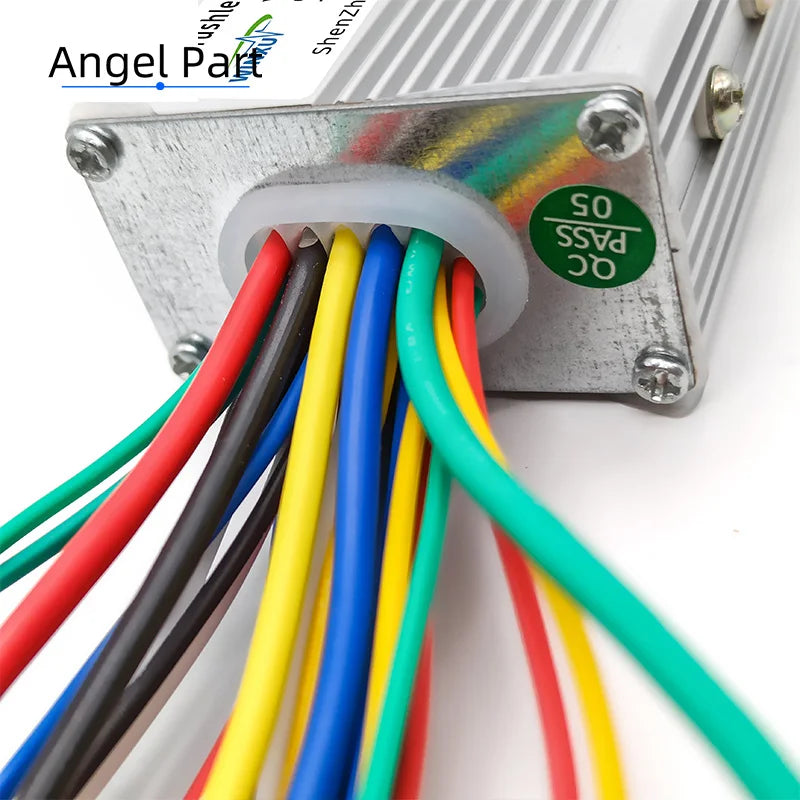

Product Process Details Display

WinXuTech Controller Size Display
