SPECIFICATIONS

Brand Name: RisunMotor

Design: Brushless

High-concerned chemical: None

Origin: Mainland China

Voltage: 36V/48V/52V/60V/72

Wattage: > 400w

48V-72V 3000W 60A 18MOSFET Sine WaveIntelligent Controller for eBike Electric Bike

Very important Notice:

This controller can only work without display or with our display, please never use it with your own display (because program is different)

Parts Including:

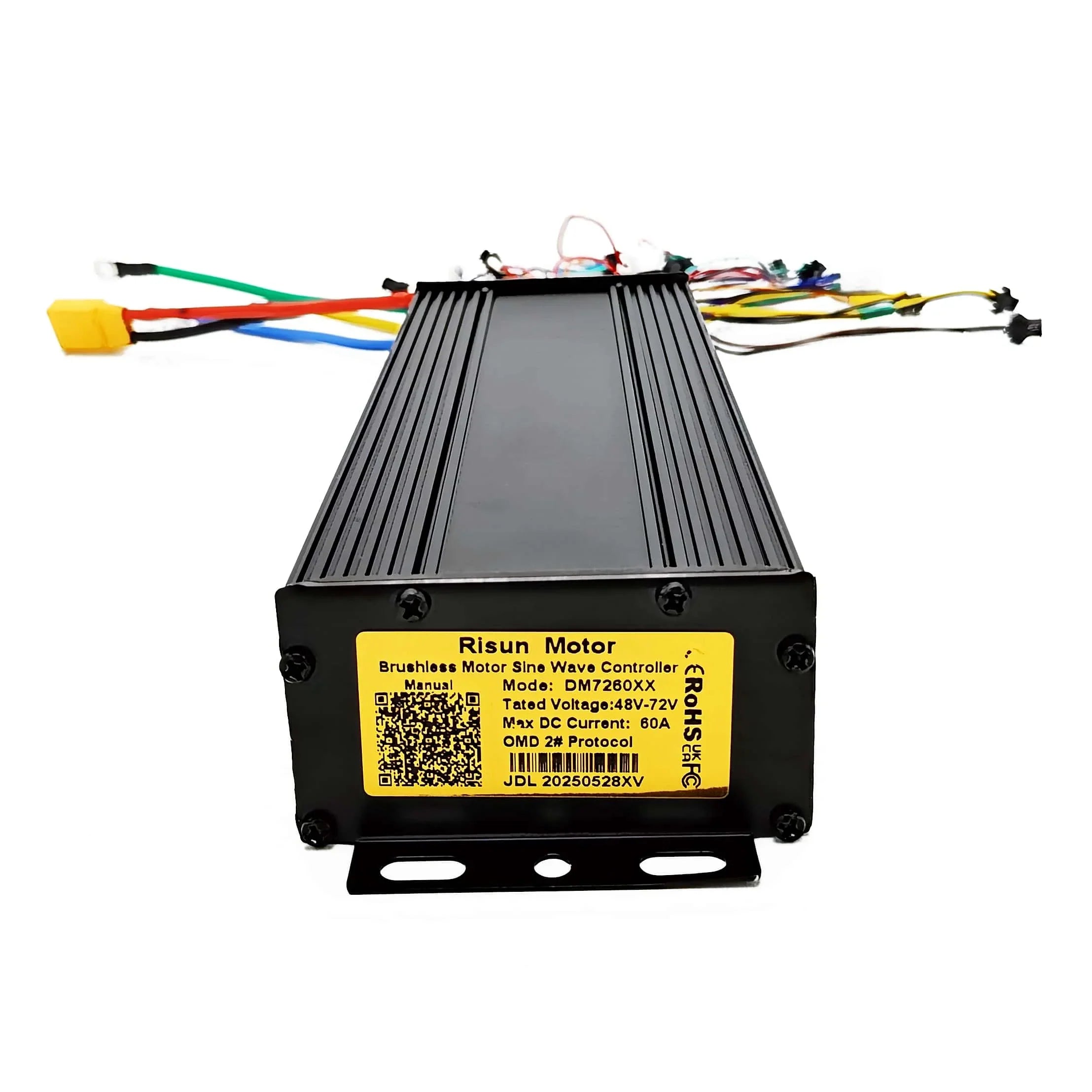

1. 48V 52V 60V 72V 60A 18 MOSFET Universal Voltage 3000W Sine Wave Controller

2. 48V, 52V, 60V, 72V UKC1 Colorful Display, SW 900 Display or SW 900 Colour Display (Optional)

Technical Data of the Controller:

1. Rated Power: 48V 1382W/ 52V 1498W/ 60V 1320W/ 72V 2073W

2. Brake: Low Voltage Brake

3. Alarm: Low Voltage Alarm

4. Rotor Position Detecting Method: Hall sensor

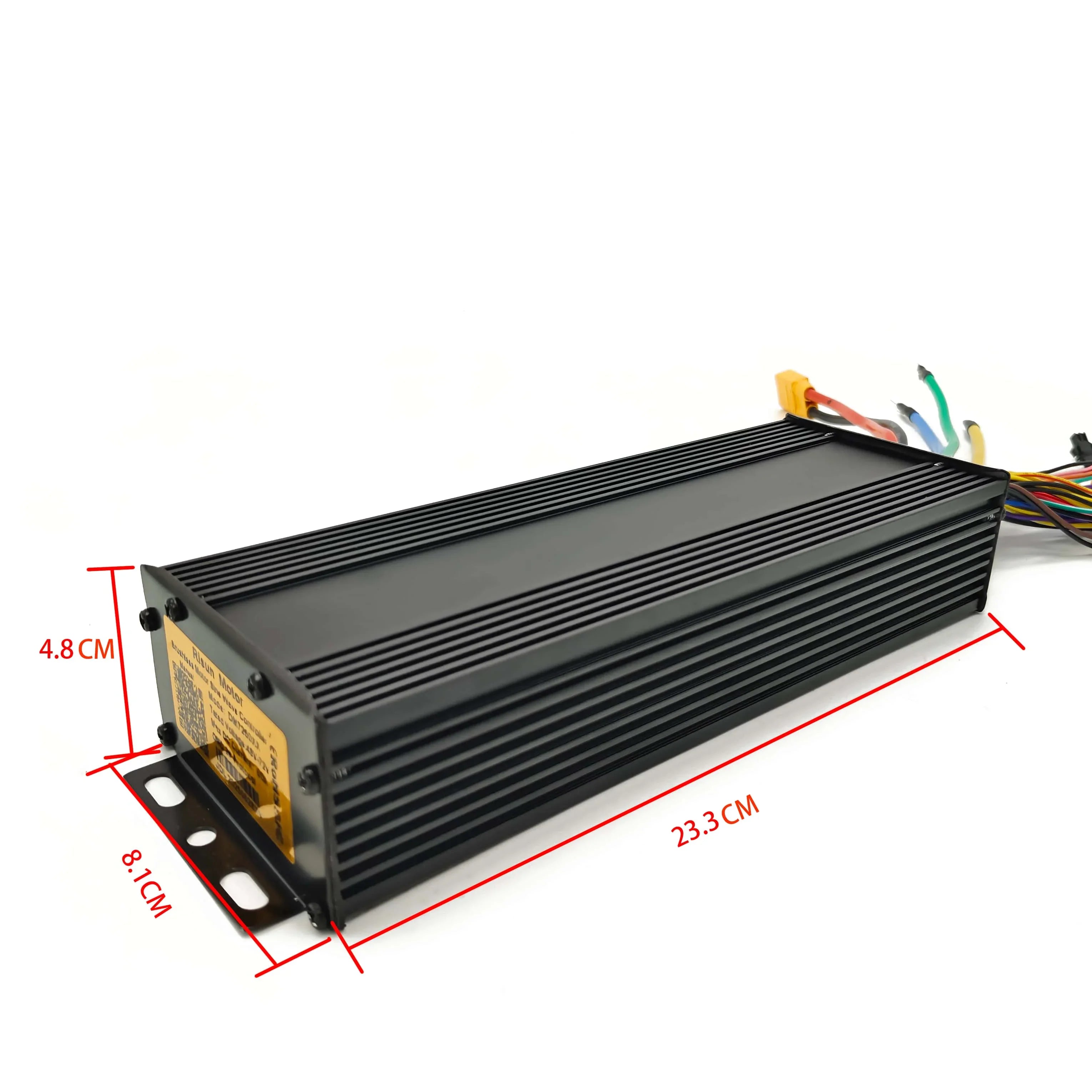

5. Size: 233*81*48mm

6. Waterproof Grade: IP65

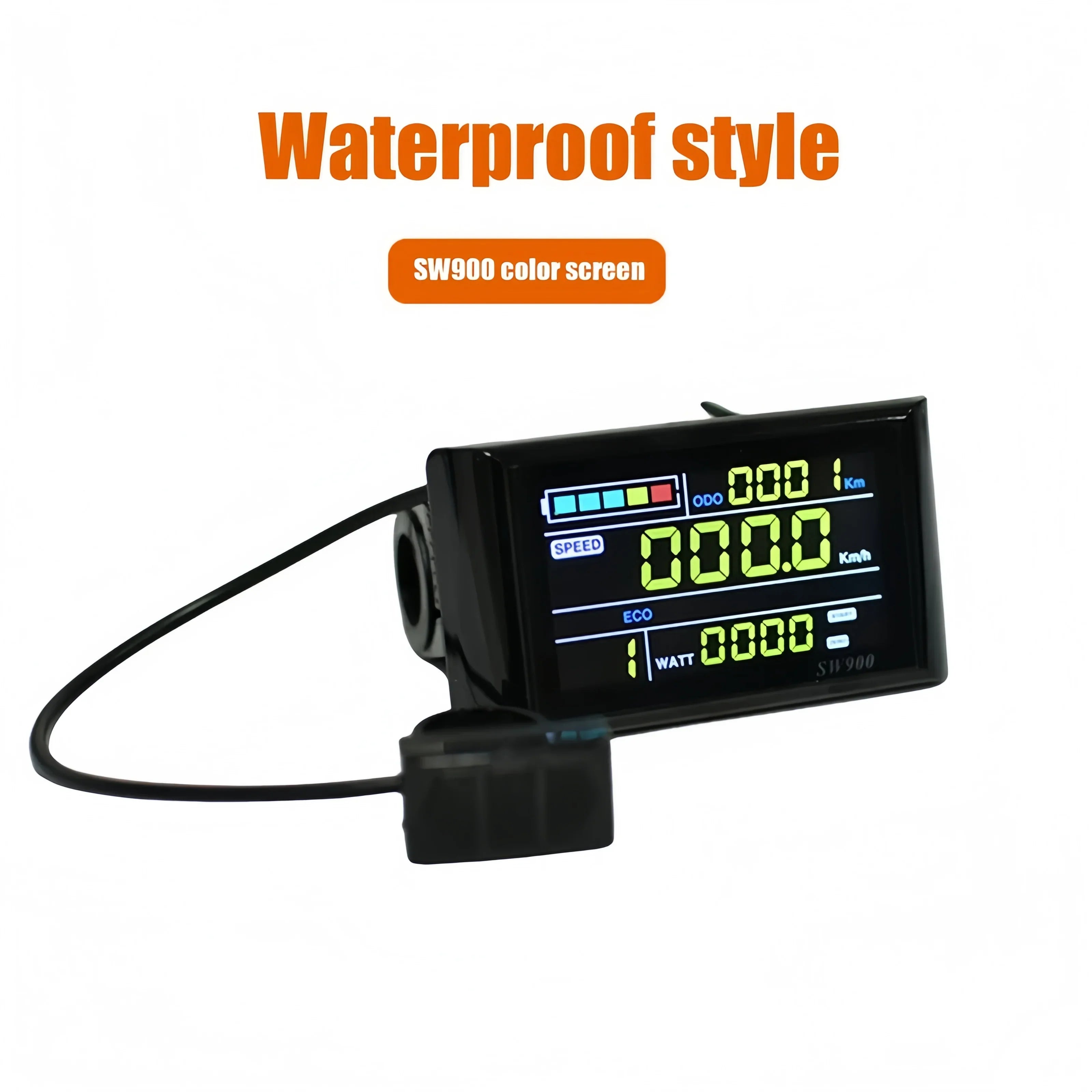

UKC1 LCD Color Display Specification: 3.5 inch IPS screen

1) 24V/36V/48V/52V/60V/72V input

2) Rated operating power : 1W

3) Max operating power : 5W

4) USB charging port : 5V 500mA

5) Off leakage current < 1uA

6) Support current to controller : 100mA

7) Size:111.1*66.8*82.8mm

8) Waterproof grade:IP65

9) Operating temperature : -20~70℃,

10) Storage temperature : -30~80℃
