SPECIFICATIONS

Battery Included: Yes

Brand Name: KPHRTEK

Condition: Brand New

High-concerned chemical: None

Is Smart Device: no

Item Type: Electronic Fence,Training Collars

Material: Plastic

Model Number: KD-661C

Origin: Mainland China

Target Pet: Dog

Type: Dogs

whether electrical: Yes

KPHRTEK KD-661C Waterproof Rechargeable Wireless Electronic Pet Fence System 1/2 DOG White Green

Brand New - Manufacturer Sealed / FREE Shipping
Features
· Completely wireless fence system with flags layout,Signal field is a circular boundary
· Progressive warning tone,Variable field width control
· Speed detect Anti-run through,Multiple collars operation
· Water-resistant & Rechargeable Collar Receiver,A Water-resistant TPU collar fits dog neck sizes 8 to 21 inches

· Rechargeable Transmitter (you can use it in outside )

· 100 Levels adjustable,Range 500m, 3 Colors availalbe to choose: Green,White, Pink

Dog Fence Wireless Containment System,KPHRTEK Wire Free Fencing 1Collar Receiver 500M Radius Remote Control Rechargeable Waterproof Receiver Training Collar Beep/Tone static

>> 1 collar only<<

KPHRTEK WIRELESS PET FENCE SAFE&EFFECTIVE - KPHRTEK
Invisible fence is completely safe and harmless to your pet,if the dog is beyond the setting distance, The receiver collar will start up by a warning tone, then static shock until your dog comes back to “safety zone” ,An unlimited number of receivers supported at same time.Please install the transmitter 1.5 meters away from the ground and no metal wall, so as not to interfere with the wireless signal, affecting the remote control distance

DOG CONTAINMENT WIRELESS FENCE COLLAR RECEIVER - Receiver collar with automatic sleep function, lithium battery is 300 mA, standby time of about 12 hours, full of electricity normal use about 8-9 hours.Waterproof and rechargeable collar receiver,the collar fits dogs 8 pounds and up with neck sizes from 6 to 26 inches (Small/Medium/Large/Extra Large Dogs),The static mode of the collar is safe and harmless for your pet

WIRELESS FENCE COVERAGE ADJUSTABLE - Level 1-100 Up To 500 meters radius at Max Setting,Do not touch the two screws on the collar before connecting the receiver and the transmitter, it is best to stuck the test light on the two studs before turning on the power, and if there is an electric light, do not touch the electric screw Will not be mistakenly touched by the electric shock

EASY FOR CODING - First start the transmitter and then receiver start, short press the transmitter ON / OFF button, the transmitter into the code state, digital display "1dp" and flashing, the code duration of 7 seconds, then press the receiver power button So that the receiver also entered the code state, the receiver red light long, on the issue of "B" sound while the blue light flash once, said the success of the code

NOTICE - THE receiver collar should be closed before cutting off the transmitter power;DO NOT leave the collar on your dog for more than 10 hours per day;NEVER perform set-up procedures when the collar is on your dog;KEEP the receiver collar away from children;A low battery may cause intermittent operation. Do not use if you suspect a low battery

PLEASE READ BEFORE PURCHASING OR BIDDING!

I am committed to make your ebay experience better than the last . Please review all photos for the quality of the the item and what you will receive. I only ship out what you see in the photos (Nothing More Nothing Less). If you feel my service or item is not worthy of five stars or have a problem with your e-Bay transaction please contact me before leaving a negative feedback or Item Not as Described and I will do whatever it may take to leave you satisfied with your purchase. 99.9% of all issues can be solved with just on quick e-mail. Thank You!

Policies

General:

Please contact me with any questions before bidding or buying - I will

respond promptly, Mondays through Saturday. I do my best to present accurate, detailed information for every item I sell. Any item not specifically listed as "comes with" is not included (even if an accessory is mentioned in the listing description elsewhere). Original / factory / manufacturer's warranties are no longer valid. If you have encountered a problem or issue with your item PLEASE DO NOT OPEN A CASE, a simple message or email will be the fastest solution. I will always leave you satisfied!

l. Product Description

The electric pet fence system KD661 is reliable and safe for pet training. It completely got rid of the trouble of wiring, and very convenient to establish a safe area of pet activities. Transmitter as the center, the remote control radius is up t0 500 meters, and coverage is up t0 78 hectares. In this large space, your dog can go everywhere freely and safely. You wouldn't worry about their activities limited or getting lost. Therefore, it can be widely used dog training at home or field trip.

II. Main Features:

1. Wireless fence system with flags layout;

2. A circular signal area based on central of transmitter and the remote control range is up t0 500 meters;

3. Start up with warning tone and static shock modes automatically if your dog is beyond remote control range;

4. Rechargeable transmitter with high battery capacity. Waterproof and rechargeable receiver collar;

5. 100 levels of transmitter signal intensity to adjust the remote control range

6.Very easy to make pairing for transmitter and receiver;

7. Multi collar receivers are supported by one transmitter;

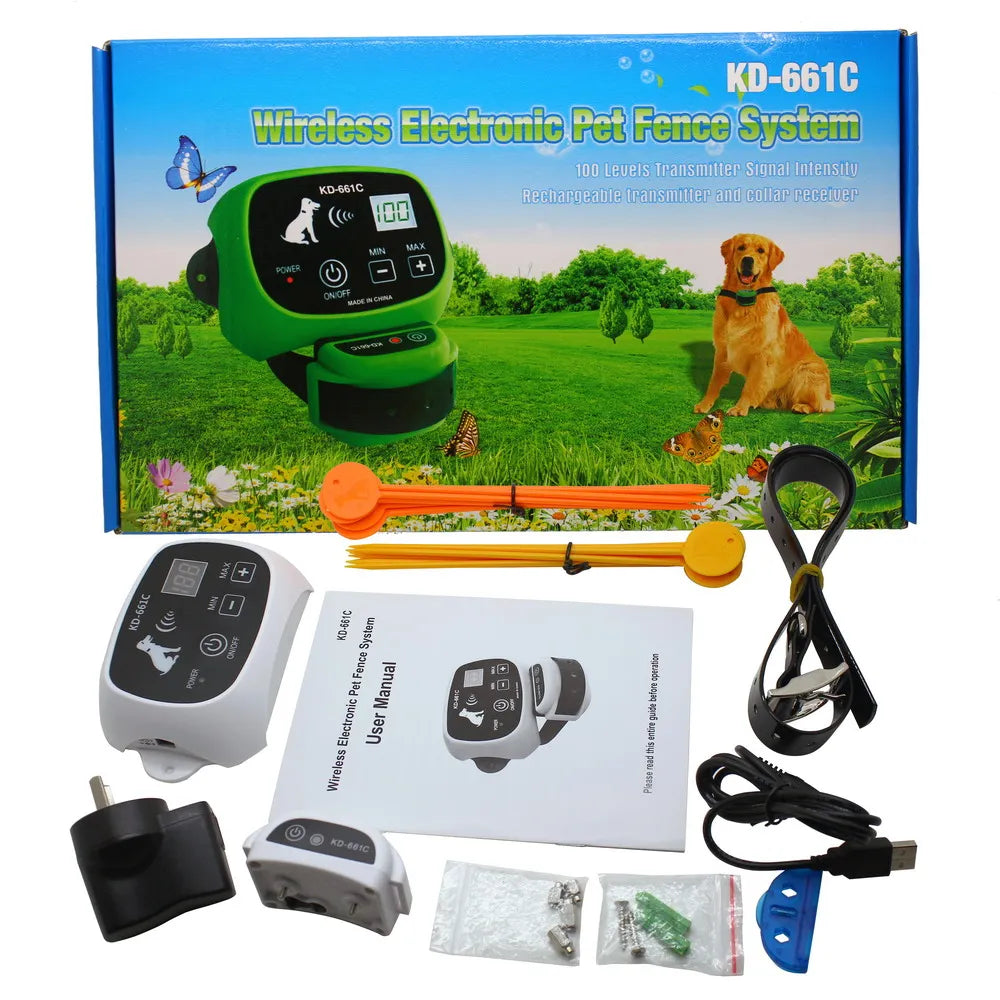

III. Package Including:

KD661C-1:

Wireless Transmitter *1

Collar Receiver *1

Adjustable TPU Strap *1

5V/1A Charger *1

Metal Contact Probes *4

LED Test Light *1

English Manual *1

Flag *20

KD661C-2:

Wireless Transmitter *1

Collar Receiver *2

Adjustable TPU Strap *2

5V/1A Charger *1

Metal Contact Probes *8

LED Test Light *1

English Manual *1

Flag *20

III. Transmitter operation

1. Power ON or OFF the transmitter Press ON/OFF button and hold for 3 seconds to power on the transmitter. The LED power indicator willlight up to be blue and a value of signal level displays on the screen. To power off the transmitter, you can also press ON/OFF button and hold for 3 seconds.

2. Set up the remote control range The remote control range is a straight distance between transmitter and receiver collar, which depends on the intensity of transmitted signal. The value of transmitted signal is more, the remote control range is farther. For this wireless fence KD661C, the max. remote control range is up t0 500 meters.

Press "+" or "-" button on the transmitter, you can increase or decrease the signal level from O t0 100 levels. the value you setting will display on the screen.

Notice:

The remote control distance is measured in pen area, it will be affected by electromagnetic waves or obstacle around the fence system, and the distance will be reduced slightly.

3. Switch the transmitter in pairing status

When the transmitter is on, press ON/OFF button and shortly switch it in pairing status. The screen will display "1dP" with flashing. You should finish the pairing within 10 seconds, otherwise, the display will disappear and return back to working status (it will display signal value ) .

4. Charge for the transmitter

The transmitter is rechargeable. When the LED power indicator changes to be red and flashing , it means transmitter is low battery. Please charge for it. Once it is fully charged, the LED will turn to be blue.

Notice: Please charge it at least 4 hours at first time.

IV.Receiver collar operation

1. Assemble the parts into receiver collar

Assemble 2 contact probes to receiver's screws. (There two type probes in the package, the short ones suit for small size dogs, and long probes for medium and large size dogs. ), and then make TPU strap go through receiver back and both holes.

2. Power ON/OFF the receiver

Press "ON/OFF" button and hold for 3 seconds to turn on the receiver collar. A short "Bi" sound will be heard and red LED lights on. If the transmitter is off or out of control, the "Bi" sound will issue every seconds, unit you turn off the receiver or make sure the transmitter is on and within remote control range, which displays on the transmitter screen now.

3. Make receiver pairing with transmitter

To make a receiver pairing with transmitter, firstly you should ensure the transmitter is in pairing status and receiver is on, and then press ON/OFF button shortly. Once the power LED of receiver is changed toblue with a short sound "Bi", it means the pairing is successful.

Notice: If the transmitter is off, the receiver would not enter into paring status.

4. Charge for the receiver collar

The receiver collar is rechargeable. When the LED power indicator red and flashing, it means the receiver is low battery. Please charge for it. The charger is common with that of transmitter. Once it is fully charged, the LED will change to blue.

Notice: Please charge it at least 4 hours at first time.

V. Connect a receiver to transmitter

If you want to connect any of KD661C receiver with a KD661C transmitter and set up the fence system. You should make them pairing at first. Please follow the pairing steps as below:

Step l: switch the transmitter in pairing status

Check the transmitter is on. And then press the ON/OFF button shortly. The screen will display "ldP" with flashing, it means the tra nsmitter is in pairing status now.

Step 2: make a receiver pairing with the transmitter

Take a receiver near the pairing transmitter, press the ON/OFF button of receiver shortly. The power LED is changed to blue and a short sound "Bi" is issued, it means the pairing is successful.

Notice: you should finish the pairing within 10 seconds, otherwise, the display of transmitter will disappear and return back to working status (it will display signal value ) .

Step 3: verify the wireless fence system

Setting a proper signal levels on transmitter panel to get the remote control range you want (please refer to step 2 0f IV, "set up remote control range) .

Take away the receiver from the transmitter unit "Bi-Bi" sounds is issued from it, and attach the LED test light on contact probes of receiver, the LED will light on. That means, the receiver is beyond the boundary you set just now and all the function are OK.

Otherwise, the receiver is not connect to the transmitter, you should connect it again as above steps.

Notice: all the receivers have been paired to the transmitter and verified the connection before packing.

VI. Start training your dogs

1. Put the receiver collar on the neck of your dog, and check the tightness is proper.

2. Check or Set the transmitting signal level by pressing "+/- " button on the transmitter. The value you setting will display on the screen.

Notice: The remote control range is measured in open area, it will be affectted by electromagnetic waves or obstacle around the fence system, and the distance will be reduced slightly.

3. Place the transmitter is more than l.5 meters from ground, and there is no any metal wall around it. So as to obtain the best remote control range.

VIII. Working principle of the fence system

The system will start up automatically while your dog is running beyond the setting control range and going ahead, the receiver will start up working as this sequence, unit your dog comes back to "safe area".

1. Issue "Bi-Bi" warning sounds with red LED is flashing every 2 seconds;

2. Start static shock in low level after the third warning sound and increase the intensity of static shock from level l to level 4 every seconds

3. Stop working for 30 Seconds and then start another sequence.

If your dog doesn't come back to the safe area always, the receiver will give up working after the third cycle. It will automatically shut down to prevent your dog from excessive punishment.

Notice: Please check the transmitter is sufficient battery capacity, while the system is in working status. If the transmitter is powered off somehow, the receiver will keep working with warning sounds and static shock for 3 work cycles, which the situation is similar to dog always keep moving beyond the boundary.

IX. ImportantNotes:

1. The wireless fence system is intended to use for dogs only.

2. A low battery may cause intermittent operation. Do not use it and charge it immediately for a low battery.

3. DO NOT leave the collar on your dog for more than 10 hours per day.

4. Keep the receiver collar away from children.

5. Read all instructions before using this product.

X.Reset Operation

1. Reset Transmitter: if the battery is full capacity,but the transmitter can't power on, please press the RESET button to restart it. Then it will be powered on.

2. Reset Receiver: when the batter is full capacity, but the receiver collar can't power on, please charge the receiver collar again for one or two seconds to make it RESET. Then it will be powered on.

IMPORTANT Notice :

When the transmitter indoor usage please help increase the transmitter signal levels accordingly because of the obstruct of the house structure.
