SPECIFICATIONS

Adapter Input: AC100-240V, 50-60HZ

Adapter Output: DC15V/1.2A

Brand Name: NONE

Cable for Intra-monitor: 4 core

Cable for Monitor-to-Camera: 4 core

Call Holding Duration: 60s

Certification: FCC,CE

Extension Memory: Support Max 128G TF Card

Free APP: Tuya Smart APP for iOS and Android

High-concerned chemical: none

Installation: Surface mount

Material: ABS and Acrylic Panel

Model Number: V7022A-AHD-WIFI/XM718D

Monitoring Duration: 30s

Motion Detection: Support

Net Weight: 1000g

Origin: Mainland China

Screen: 7 inches IPS Touch Screnn

Video Format: AVI

Video Input Signal: 1080P

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

ingtones: 10

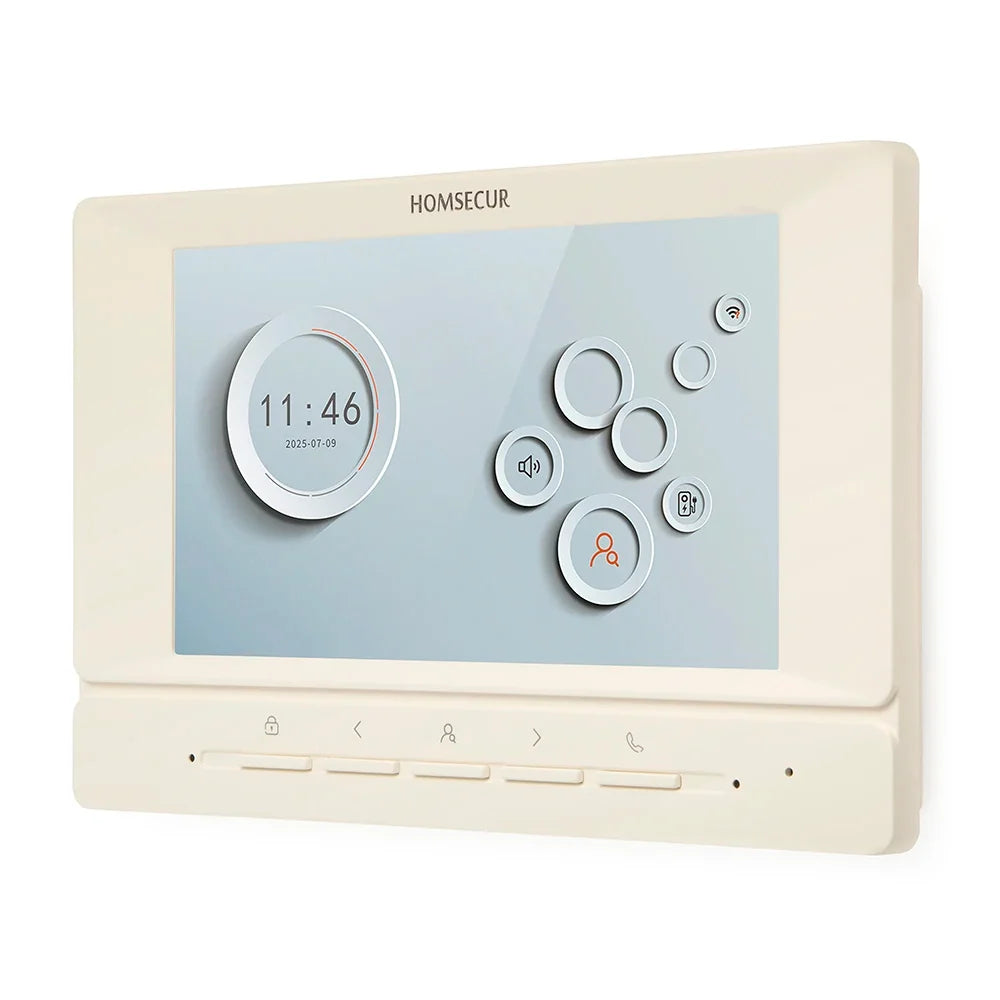

HOMSECUR® 7" WIFI Indoor Monitor (V7022A-AHD-WIFI)

Heads-up:

This indoor monitor doesn't work by itself — you'll need one of our doorbell cameras to go with it. Make sure you have one before ordering to avoid setup problems later!

High-resolution display
Smartphone "TuyaSmart" APP
Hands-free communication
Real-time outdoor monitoring
One-button unlocking
Adjustable intercom volume
Adjustable color, brightness, and contrast
User-friendly mute mode
Snapshot and recording functions
Extension memory (Max 128G TF Card)
10 ringtones selectable with adjustable volume
Up to 4 indoor monitors per family

Works with DC12V electric locks (optional)

Indoor Monitor Specifications

Model NO.:V7022A-AHD-WIFI/XM718D
Screen:7″ IPS LCD
Resolution:1024×600
Video Input Signal:1080P(2.0MP)
Free APP:Tuya Smart APP for iOS and Android
WiFi:IEEE802.11b/g/n/ac (2.4GHz/5GHz) wireless network
Call Holding Duration:60s
Intercom Duration:90s
Monitoring Duration:30s
Mute Function:ON/OFF
Power Consumption (working):≤10W
Power Consumption (standby):≤3W
Material:ABS & Acrylic Panel
Adapter Input:DC15V/1.2A
Extension Memory:Support Max 128G TF Card
Snapshot Format:JPEG
Record Format:AVI
Net Weight:330g
Working Temperature:0°C~50°C
Installation:Surface mount
Ringtones:10
Cable for Intra-monitor:4 core
Cable for Monitor-to-Camera:4 core

Free App for iPhone and Android

Search "TuyaSmart" on the App Store or Google Play. Supports intercom, monitoring, and unlocking via smartphone for remote access anytime.

SPECIFICATIONS

HOMSECUR® 7" WIFI Indoor Monitor (V7022A-AHD-WIFI)

High-resolution display

Smartphone "TuyaSmart" APP

Hands-free communication

Real-time outdoor monitoring

One-button unlocking

Adjustable intercom volume

Adjustable color, brightness, and contrast

User-friendly mute mode

Snapshot and recording functions

Extension memory (Max 128G TF Card)

10 ringtones selectable with adjustable volume

Up to 4 indoor monitors per family

Works with DC12V electric locks (optional)

Free App for iPhone and Android

Installation: Surface mount

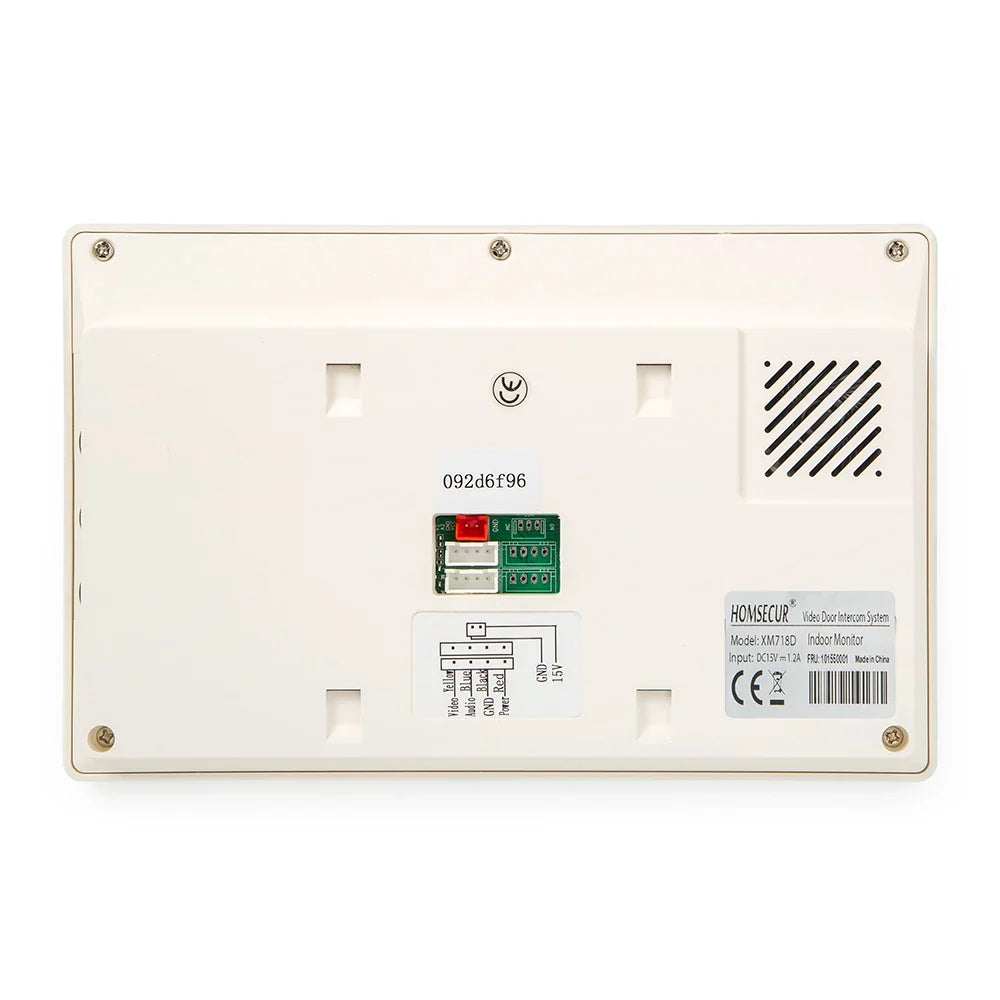

Interface

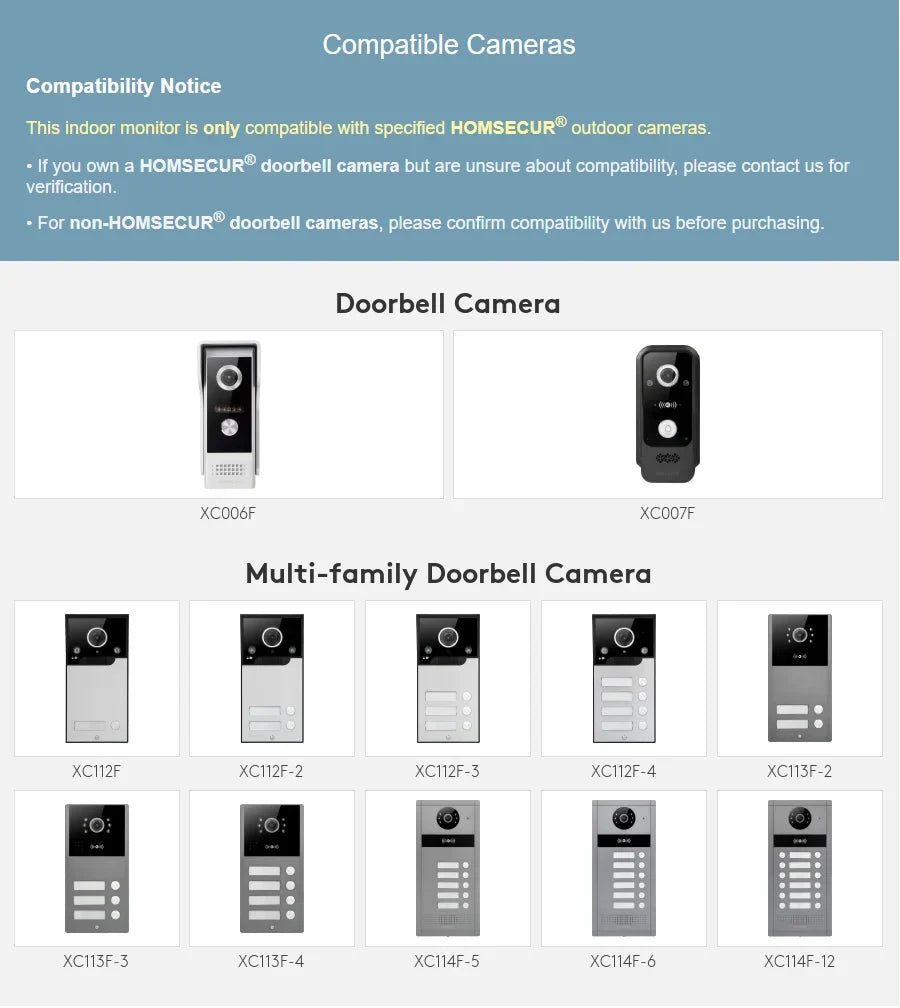

Compatibility Notice

This indoor monitor is only compatible with specified HOMSECUR® outdoor cameras.

• If you own a HOMSECUR® doorbell camera but are unsure about compatibility, please contact us for verification.

• For non-HOMSECUR® doorbell cameras, please confirm compatibility with us before purchasing.
